Home Astrophotography Cameras by ZWO ASI 290MC Color Astronomy Camera
ASI 290MC Color Astronomy Camera
ASI 290MC Color Astronomy Camera
ASI 290MC Color Astronomy Camera

    ZWO

    ASI 290MC Color Astronomy Camera

    $ 249.00 Sold out
    $ 249.00

    Description

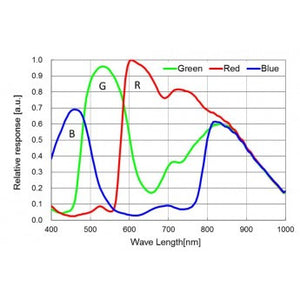

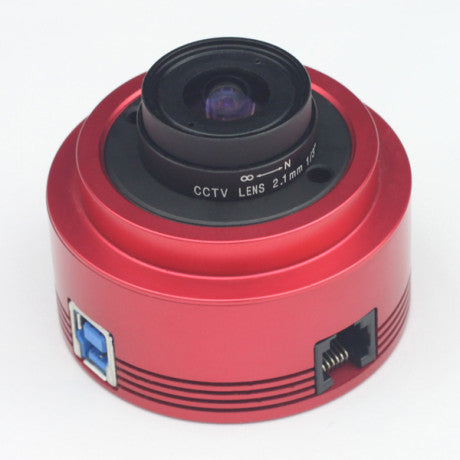

    The ZWO ASI 290MC one-shot-color camera features the Sony IMX290/291 sensor. This has excellent sensitivity and has boosted QE in the near infrared spectrum. The fast frame rates possible with the USB3.0 version make this an ideal planetary imaging camera.

    Specifications

    Sensor: 1/2.8″ CMOS IMX290/IMX291

    Resolution: 2.1Mega Pixels 1936×1096
    Pixel Size: 2.9µm
    Exposure Range: 32µs-2000s
    ROI: Supported
    ST4 Guider Port: Yes
    Focus Distance to Sensor: 12.5mm
    Shutter Type: Rolling Shutter
    Protect window: AR coated window
    Operating System Compatibility: Mac, Windows, Linux
    Interface: USB3.0/USB2.0
    Bit rate: 12bit output(12bit ADC)
    Adaptor: 2″ / 1.25″ / M42X0.75
    Dimension: φ62mm X 36mm
    Weight: 120g or 4.2 ounces (without lens)
    Working Temperature: -5°C—45°C
    Storage Temperature: -20°C—60°C
    Working Relative Humidity: 20%—80%
    Storage Relative Humidity: 20%—95%

    Supported resolution

    USB2.0 MAX FPS
    1936×1096: 20.4
    1280×960: 35.3
    640×480: 141.5
    320×240: 355.9
    2X2Bin :968×548: 20.4

    USB3.0 MAX FPS(12bit/10bit)
    1936×1096: 82.2/170
    1280×960: 93.6/193.9
    640×480: 184/381.2
    320×240: 355.9/737.5
    2X2Bin :968×548: 82.2/170

    More resolutions can be user defined
