This is an open box unit that has not been used.
QHYCFW3M-US / 7 Position 36mm / Slim

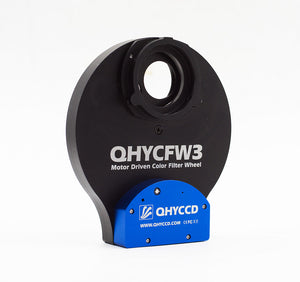

The QHYCCD 3rd-Generation Color Filter Wheel
Our new ultra-thin stepper motor drive and fully automatic filter switching revolutionizes overall performance!
New ultra-thin hybrid stepper motor drive.
QHYCCD selected a high quality ultra-thin hybrid stepper motor for the 3rd generation filter wheel design. Compared to the PM stepper motor used in many filter wheels, the hybrid stepper motor has higher precision, smaller step angle, and is more expensive. The motor is enclosed to prevent dust from entering the motor, thus improving reliability and motor life. The direction of filter rotation can be reversed: The filter carousel can be rotated clockwise or counterclockwise to complete the rotation quickly which is very convenient. The overall design is thinner.
Friction drive with zero backlash
Regarding the evolution of the motor drive, our 2nd generation filter wheels used a gear drive while this 3rd generation filter wheel uses a friction drive that results in zero backlash during operation.
USB serial port switch.
The serial port switch can accommodate fast switching between serial communication mode and USB communication mode.
Use the USB port to power the filter wheel.
The filter wheel supports the QHY 4-pin connection control mode. The firmware is open source and compatible with Arduino. The design is compatible with the QHY-OAG (off-axis guide) for the corresponding size
Beautiful in appearance and ingenious.
The QHYCFW3 main body is cut from a single piece of aluminum by a precision CNC machine. The craftsmanship and finish are exquisite. When you hold the small design, you do not want to put it down!
A specially designed filter carousel allows the installation of unmounted filters of different thicknesses. Mounted Filters below 10 mm thick can be installed and unmounted filters of different thicknesses can also be mounted on the same filter disc. Filter positioning is more precise and faster.
The configuration of the filter wheel includes:
- M42 (M) to 2-inch extension ring
- 400mm oblique ring
- M3*6 screw × 6
- M4*70mm hand screw × 2
- M4*35mm hand screw × 3
- M2*4 screw × 30
- Φ2*4 red gasket × 60
- Φ3*6 red gasket × 30
- M2*3 spiral guide column × 21
- Φ3 red gasket × 21
- DIN4 to R11 filter wheel cable (optional QHY22, QHY11 series application)
- Communication line (optional QHY9 application)
- Power splitter (optional QHY9 application)

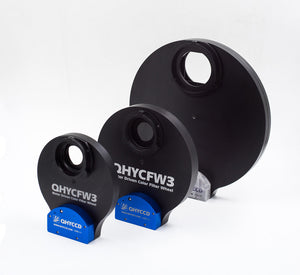

Filter Wheel Specifications:
|Model||Disk Supported||Filter Wheel Thickness||Maximum Filter Thickness*||Weight|
9 position 2 inch / 50mm round
7 position 50mm square
|QHYCFW3L||7 position 2 inch / 50mm round||21.5mm||10mm||911g|
|QHYCFW3M-SR (standard)||5 position 2 inch / 50mm round
7 position 36mm
|QHYCFW3M-US (thin)||5 position 2 inch /50mm round
7 position 36mm
|QHYCFW3S-SR (standard)||6 Position 36mm
7 Position 1.25inch
|QHYCFW3S-US (thin)||6 Position 36mm
7 Position 1.25 inch
*Note: For mounted filter, the thickness excludes the filter thread height.
