USED 5L-II-M
USED 5L-II-M

QHY

USED 5L-II-M

Regular price
$ 111.00
Sale price
$ 111.00
Unit price
per

This item is out of stock but you can place an order now and we’ll ship when it becomes available.

USED 5L-II-M

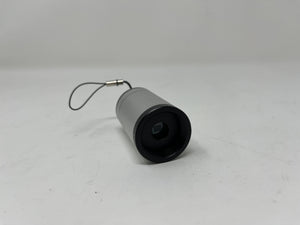

This camera is in good condition. It comes in original packaging.

Model QHY5L-II
CMOS Sensor MT9M034
Pixel Size 3.75um
Resolution 1280*960
Total Pixels 1.2 Megapixels
Optical Format

1/3-inch



Description

The QHY5L-II Series uncooled cameras fit in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. They are ideal for use as low-weight autoguiders or planetary cameras where short exposures are typical.  The cameras come in very small but powerful packages! The improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope’s eyepiece tube.

QHY5L-II is one of our most popular guide cameras, it has high sensitivity, an exceptional 74% QE, and low noise. The read noise is remarkably low (~ 4 electrons) and the on-chip FPN (Fixed Pattern Noise) calibration function solves one of the major problems of CMOS technology, resulting in images that are clear and uniform, even under high gain. With these advantages, the QHY5L-II provides outstanding image quality for planetary imaging, autoguiding, deep-sky and all-sky imaging. The sensor has 1280 x 960 pixels at 3.75um and the camera is capable of 30 FPS in high resolution mode, 106 FPS in VGA mode.

Specifications

Model QHY5L-II
CMOS Sensor MT9M034
Pixel Size 3.75um
Resolution 1280*960
Total Pixels 1.2 Megapixels
Optical Format 1/3-inch
Frames Rate (Full Resolution) 30FPS
Frame Rate (640 x 480) 106FPS
Quantum Efficiency 74%
A/D 12-bit
Color Version QHY5L-II-C
Monochrome Version QHY5L-II-M
Computer Interface USB2.0
Guider Interface Standard 6-pin RJ11
Telescope Interface 1.25-inch,CS-Mount
Weight 51g



Curves

Personal Upgrade Path

Buy risk-free: When it’s time to trade up you’ll get the most value for your used gear.
