USED GEAR INFORMATION

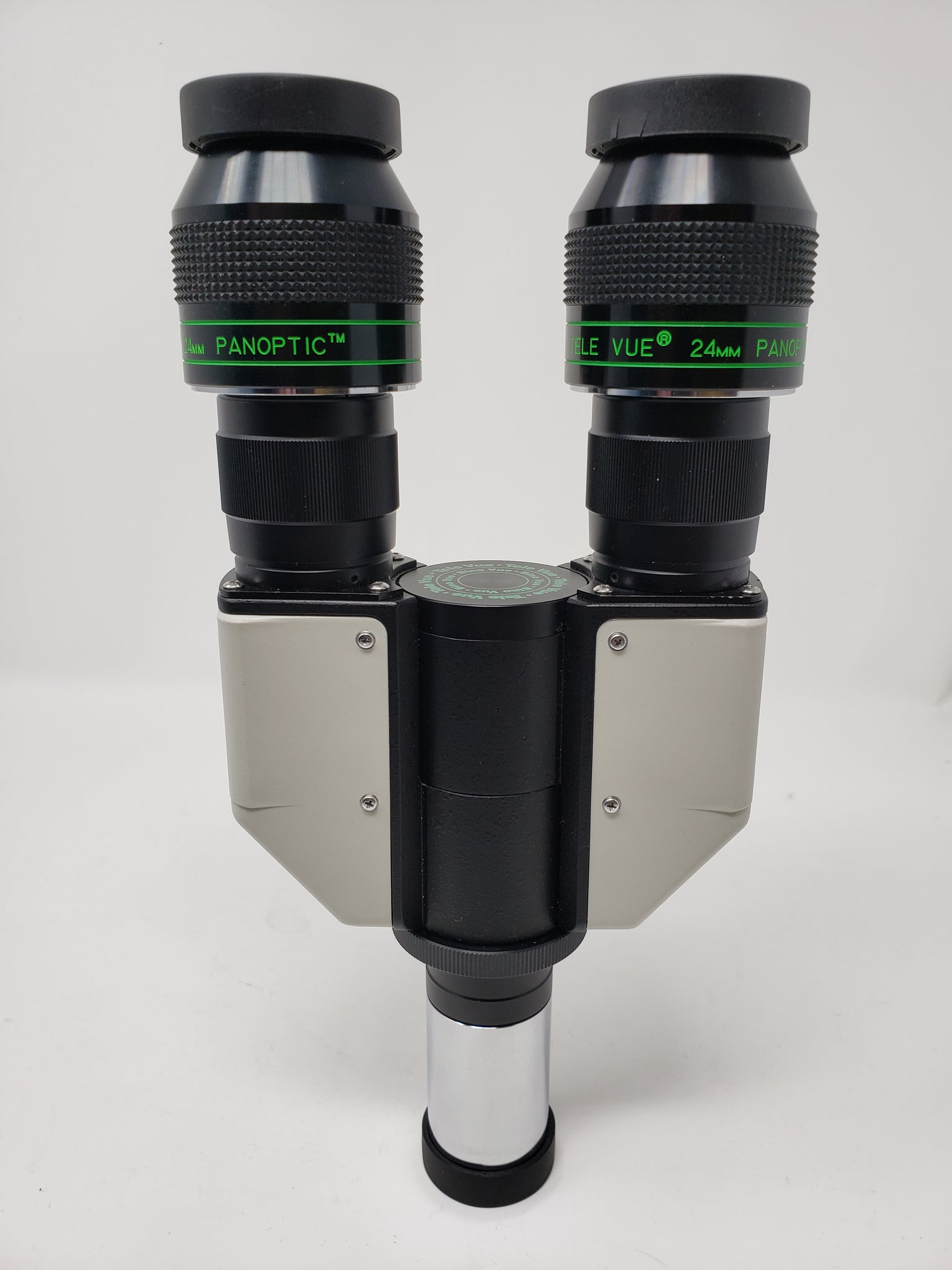

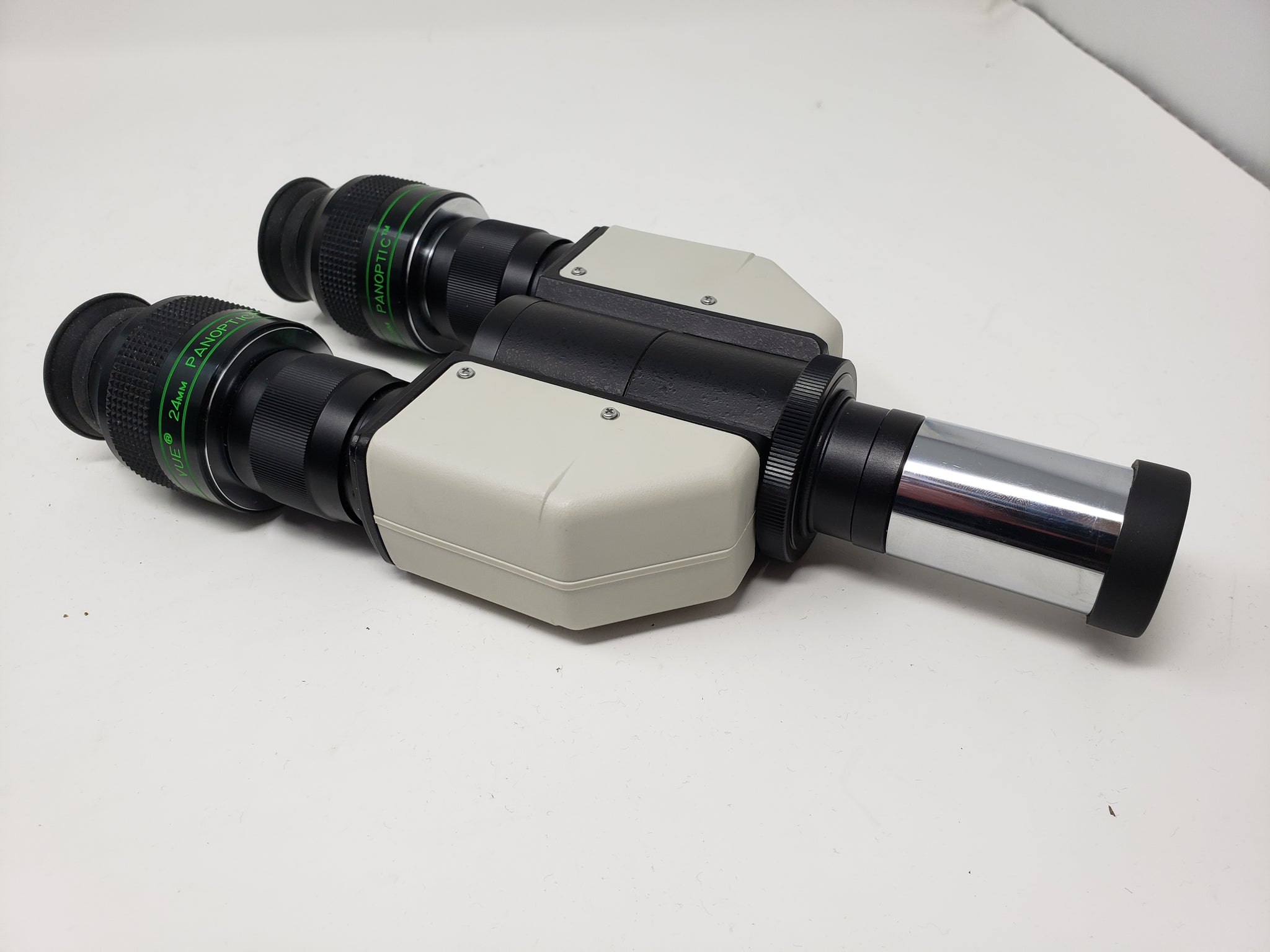

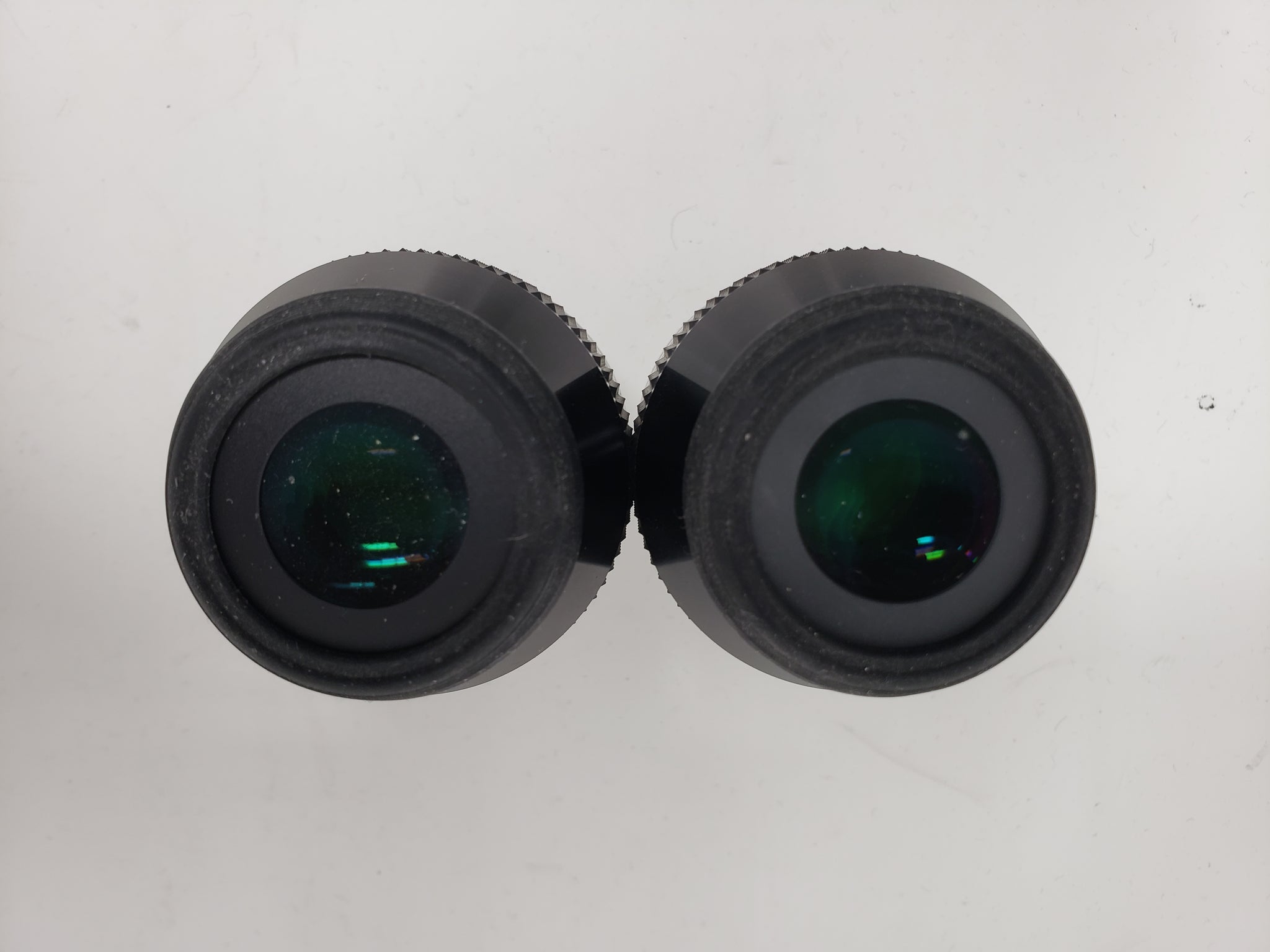

The binos are in great condition. There are minimal cosmetic imperfections and the optical components are very clear. Both eyepieces are also in great condition. The optics of the eyepieces are in amazing condition. The combo of the binos with these eyepieces will give you tremendous views of the night sky.

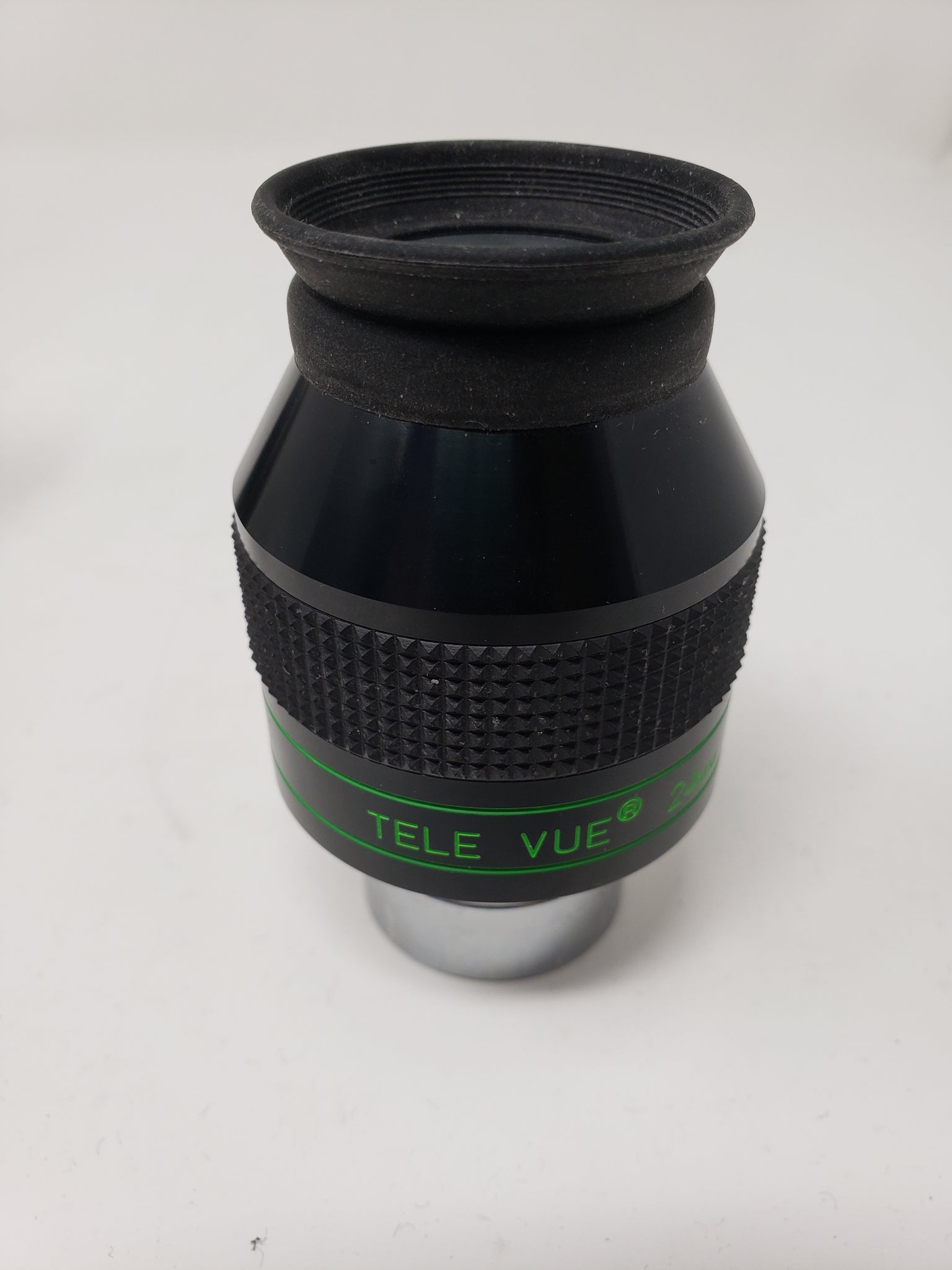

This Sky & Telescope "Hot Product" is designed to produce the largest true field possible in a 1¼" eyepiece. (Its 27mm field stop is the same as the 32mm Tele Vue Plössl). The higher power darkens the sky background while the greater magnification yields more details on extended objects. Further, its light weight (1/2 lb.), comfortable 15mm eye relief, and tapered top instantly make the 24mm Panoptic the ideal eyepiece for getting the maximum field for binocular viewers.
The Televue Wide-Field design was the starting point for the design of the Panoptic. A lens interface between the eyepiece and Barlow lens was added as a way to keep size, weight, and cost to a minimum while improving edge of field performance even further.
- blackened lens edges
- filter threads
- rubber grip rings
- cover for the eyeguard
- an undercut in the barrel for extra locking security
|Focal Length (mm)||24|
|Barrel Size (in.)||1¼"|
|Apparent Field of View (deg.)||68|
|Eye Relief (mm)||15|
|Weight (lb / oz)||0.51 / 8.2|
|Field Stop (mm)||27|
Limitations of ordinary binoculars
You're probably aware that the color correction and resolution of all high powered binoculars is far less than ideal. Usually the size, weight, cost, inconvenience and lack of interchangeable eyepieces render them undesirable for all but the most die hard fans.
Limitations of ordinary 45° binocular attachments
- The 45° angle is very uncomfortable for high angle viewing.
- Interocular adjustments require refocusing.
- The 45° angle makes it difficult to use with reflectors.
- An erector must be added for terrestrial viewing.
Enter Bino Vue
Tele Vue immediately recognized the advantages of a binocular attachment that adjusts interpupillary distance like an ordinary binocular and sets up as easily as changing an eyepiece. The in-line viewing arrangement allows inter-ocular adjustment without focus shift. And, they use the largest prism apertures possible.
The Tele Vue Touch
To permit Bino Vue to reach focus with any telescope, Tele Vue engineered an optical elimination of its 5.1" path length. Our special compensator lens system makes the Bino Vue parfocal when fully inserted to its stop and, results in only a 2x increase in magnification. The compensator lens also corrects for prism effects that can degrade high-power viewing.
For short focal length scopes such as the Tele Vue-76, Tele Vue-85 and Tele Vue-NP101is, the 2x amplification results in low powers down in the 30x range. Even larger instruments will find the Bino Vue extremely versatile. For example, a 13.5" f/4.5 Dobsonian, would have a low power limit of 96x with a pair of 32mm Plössls.
SCTs have enough focus travel to use Bino Vue without the compensator. For any scope that can accept Bino Vue's 5.1" of path length, Tele Vue also includes an empty tube to install in place of the amplifier assembly.
Finally, Tele Vue tests the collimation and image quality of each unit. This time and labor intensive operation is essential for a binocular viewer used at planetary magnifications. Tele Vue has the facility and expertise to service the Bino Vue should it be required. You always have that assurance with Tele Vue.
Bino Vue Operation

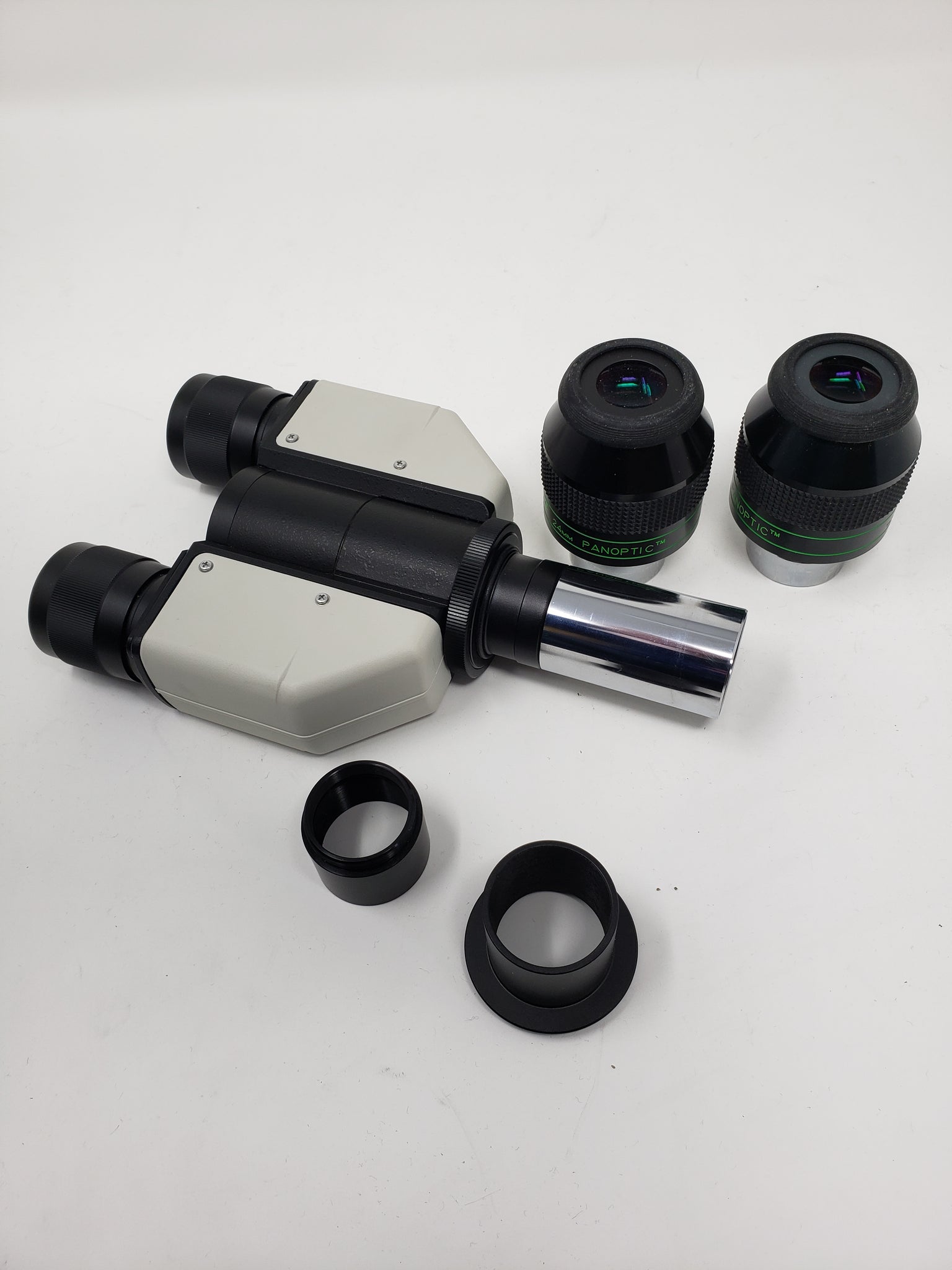

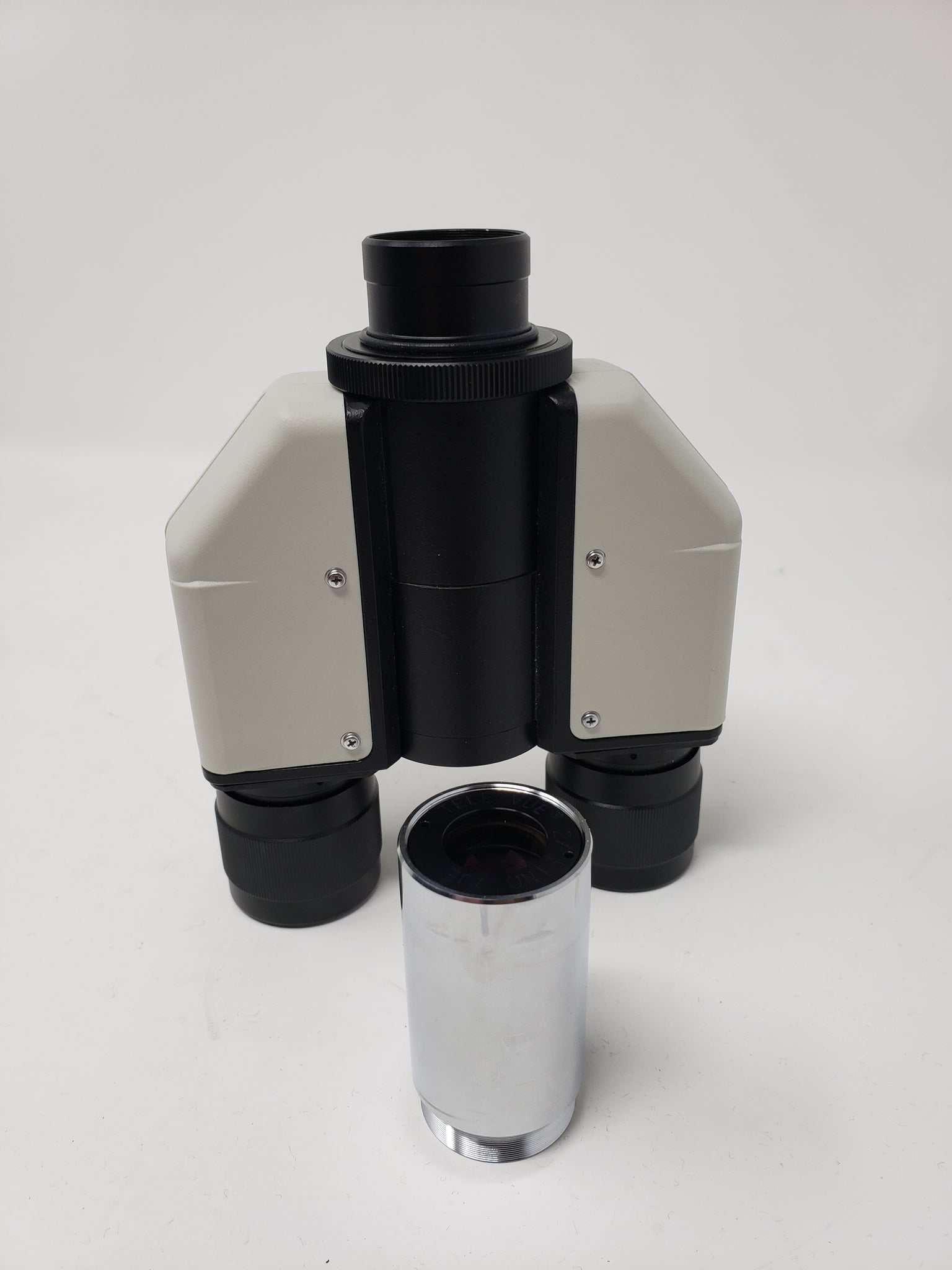

Bino Vue comes standard with the Flat Coupler and 2x Amplifier installed on the body. This permits the Bino Vue to be used in all telescopes with just a moderate focuser in-travel requirement. The 2x Amplifier has filter threads to accept 1¼" filters. The Flat Coupler provides enough space for the inclusion of filter without hitting the diagonal mirror when using 2" Tele Vue diagonals and the 2" - 1¼" Tele Vue "High-Hat" adapter.
Why Choose The Tele Vue Bino Vue
When considering binocular viewing, Tele Vue strongly recommends its Bino Vue to preserve the utmost image quality in fine telescopes. Bino Vue, first bought to market in 1995 by Tele Vue has a number of unique attributes that secured its reference quality status:
- 27mm aperture prisms to permit full use of maximum field 1¼" eyepieces such as 24mm Panoptics.
- Multi-coatings and dielectric beamsplitter coatings for highest transmission with neutral coloration.
- Collet-type adjustable eyepiece clamping for non-marring, rock solid security with no chance of high powered collimation loss from screw-type diopter adjustment systems.
- 100% inspection, collimation Q.C. to assure prevention of eyestrain. Factory collimation checking and realignment service available with quick turnaround.
- Lightest weight large prism unit (saves ½-lb).
- 2x Amplifier Corrector fully compensates for introduction of spherical, color and astigmatism in prisms, along with path length compensation -- maintains simple drop-in installation just like any 1¼" eyepiece, while maintaining optimal optical performance in the finest, fastest instruments such as the Tele Vue-NP101is.
