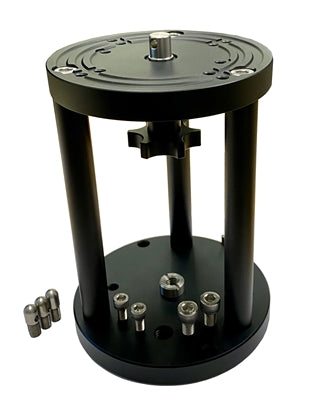

This new versatile iOptron® MiniPier is designed for iOptron GOTO mounts and tripods. The design allows a tripod to access different mount head. It also provide 7" extension for a long telescope. It may fit on other brand tripods with some DIY.
Features
Versatile design to adapt most iOptron mounts and tripods
CNC machined
3-point leveling (for 8061A carbon fiber tripod only)
HAZ31/46 (3/8”-16 locking knob)
CEM26/HEM27/GEM28/HAE29 (2X M6 screws, 83mm separation, 1X center post)
CEM40/HAE43/HEM44/GEM45 (2X M6 screws, 103mm separation, 1X center post)
HEM15/HAE16/HAE18 ultra compact strain wave gear mount (3/8”-16 locking knob)
SkyTracker Pro/SkyGuider Pro (3/8”-16 locking knob)
SkyHunter (3/8”-16 locking knob)
Camera and other equipment with a 3/8”-16 mounting hole
The MiniPier fits these iOptron tripod/pier:
Carbon fiber tripod (8061/8061A)
CEM26/GEM28 tripod (2X M6 screws, 83mm separation)
CEM40/GEM45/iEQ30 tripod (2X M6 screws, 103mm separation)
CEM70/CEM60/iEQ45 tripod (2X M8 screws, 120mm separation)
CEM25/ZEQ25 tripod (3/8-16 thread adapter)
3211 SmartEQ/SGP/STP/SkyHunter tripod (3/8-16 thread adapter)
Tri-pier (M6 and M8screws)
Other tripod with 3/8”-16 mounting screw or threaded mounting holes matching the plate mounting holes
DOES NOT fit onto the following pier:
Tri-pier 360/360A
Permanent pier
Height: 178mm (7")
Top plate diameter: 124mm
Bottom plate diameter: 134mm, with 3 recessed holes for working with 8061A for fine leveling adjustment
