Track the Stars

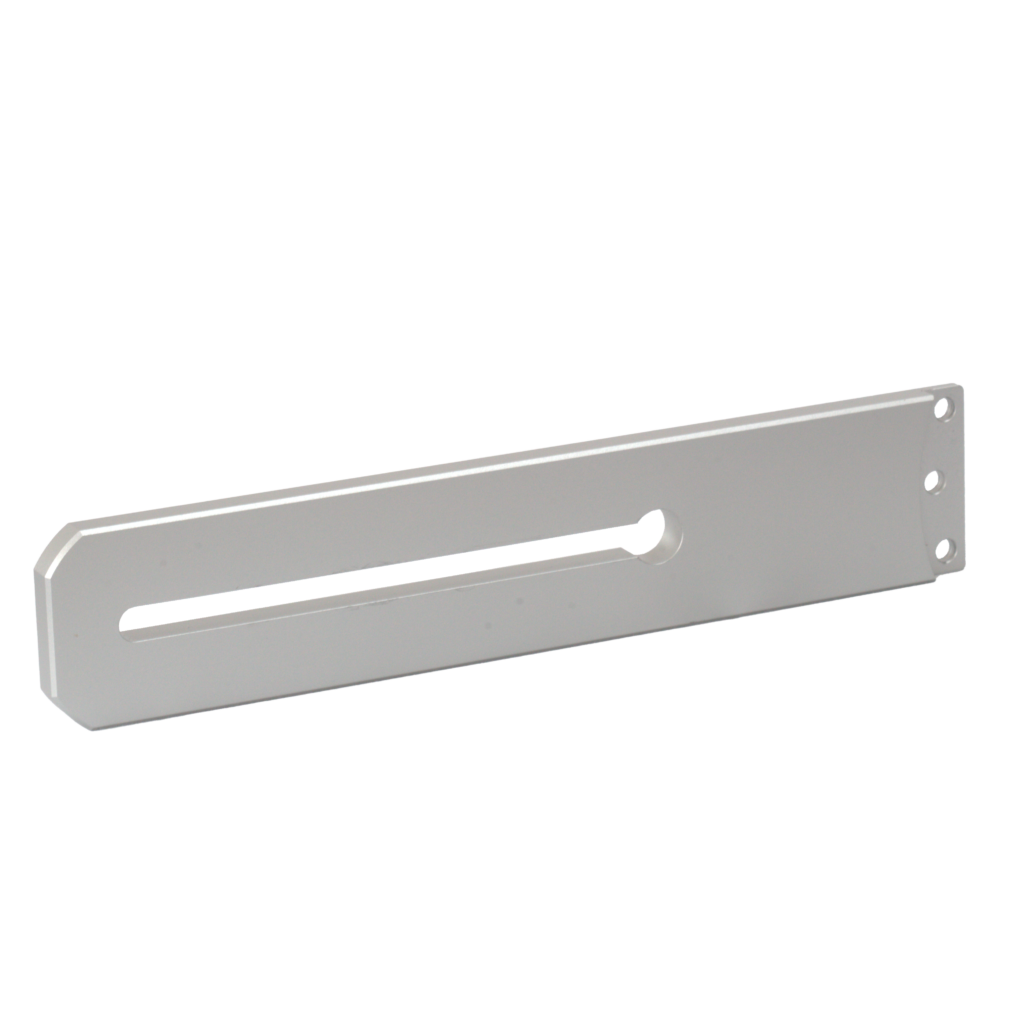

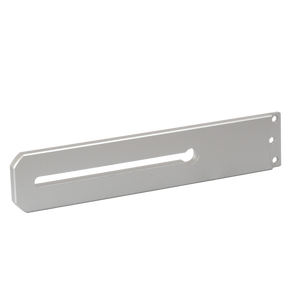

Counterweight Arm for Panther Lite
- Regular price
- $ 49.00
- Sale price
- $ 49.00
- Unit price
- per
This item is a Special Order from the Manufacturer
In Stock
Special Order
Description
Comfort Balancing solution
The counterweight arm can be used for the Comfort Balancing solution.

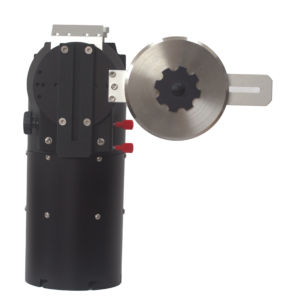

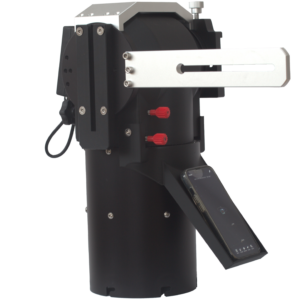

When used with a refractor/SCT/RC it is installed pointing away from the sky. When equipped with a counterweight it allows for a telescope installed on the other side of the mount head to be moved forward decreasing eyepiece height variation.
When used with a Newtonian it is installed pointing towards the sky. When equipped with a counterweight it allows for a telescope installed on the other side of the mount head to be moved backwards decreasing eyepiece height variation.
Top-mounted telescope balancing

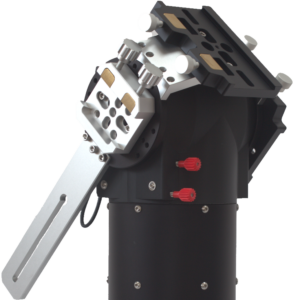

The counterweight arm can be used for balancing a top-mounted telescope. Typically two counterweight arms will be needed – one on each side of the mount head – to get a well balanced setup. It is possible to use a 4 kg counterweight on one side and an 8 kg counterweight on the other side.
Top-mounted telescope balancing – with Comfort Balancing
It is possible to install two counterweight arms for top-mounted balancing and one arm pointing backwards for Comfort Balancing. Note that this solution is less stable than side-mounting because more weight is suspended far from the rotation axis.
Easy Attachment
The Counterweight Arm for the TS-160 Panther Lite can be easily installed in multiple different configurations to make your set-up personal and well adapted for your needs.
High Capacity
The Counter Weight Arms can hold up to 2 Panther Lite Counterweights either the 4kg or 8kg version (16kg in total).
| Weight |
0.3 kg |
|---|---|
| Materials |
Aluminium, anodized natural |
| Specifications |
Specifications are subject to change without notice |
Included Items
- 1 Counterweight Arm
- 2 Installation screws
