Description

Control your mount wirelessly from a Phone, Tablet or PC

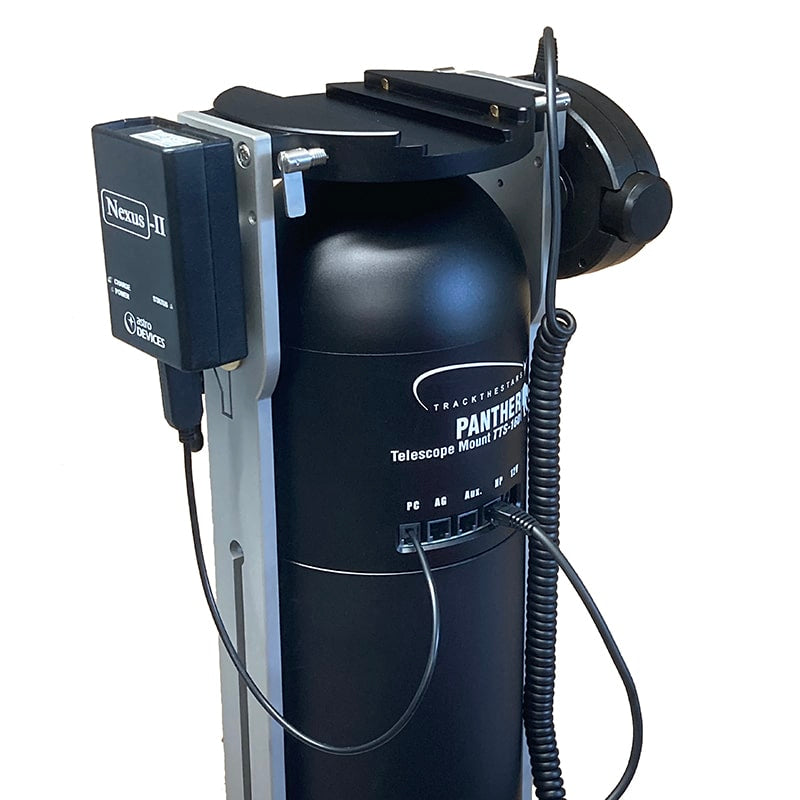

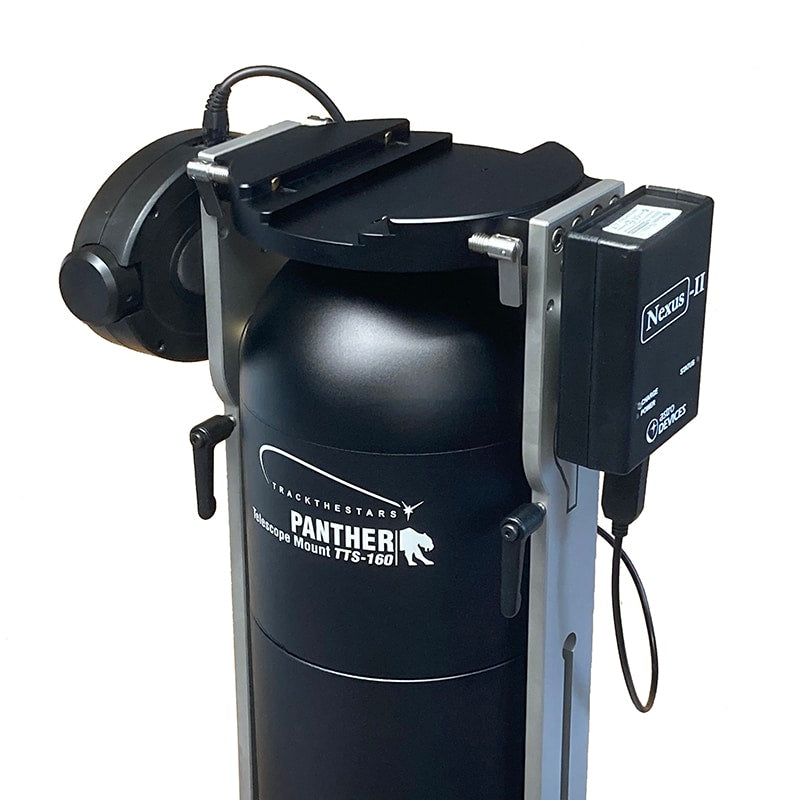

The NEXUS II box is placed on the magnetic holder on the counterweight arm. One short cable connects it to the mount head. The placement and the quality of this adapter give you a very stable Wi-Fi connection with a good range.

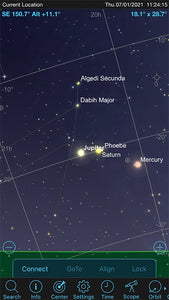

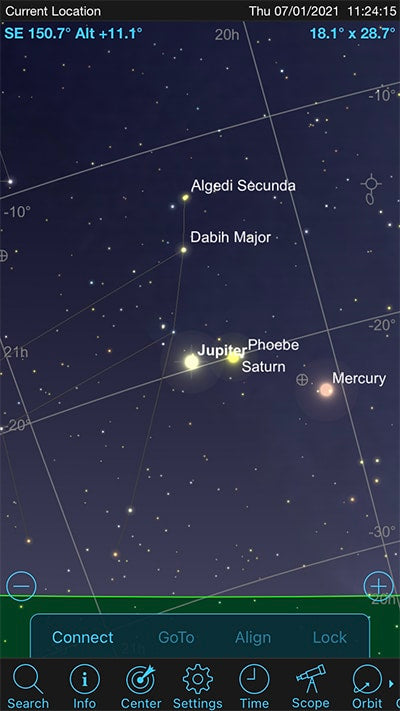

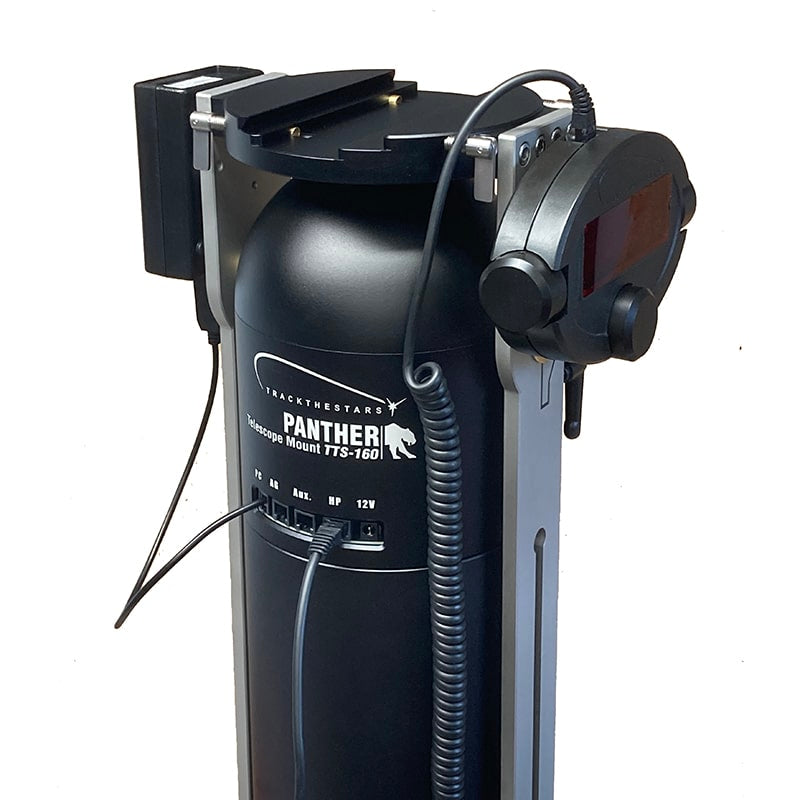

With this solution, you can control the mount from your iPhone, Android or Tablet using the Sky Safari App. Just click on the star map to have the mount go to the selected target. The mount handpad can be used simultaneously to slew the mount or make gotos.

Specifications

Up to 11 hours battery life
Rechargeable Lithium battery
Operating temperatures range from -20ºC – 50ºC (-4ºF – 120ºF)
Supports SiTech communication protocol
Handles TTL quadrature optical encoders with practically unlimited number of pulses per second
Reverse polarity protection
One USB port
Class I WiFi device (up to 150 metres range)
Works with planetarium software running on iOS, Android, Windows, and Mac OS X
Nexus-II can function as:
Wireless DSC
Wireless DSC** with SiTech motor controller
USB*** serial to WiFi adapters
Using Nexus-II in combination with a planetarium software provides a cost effective yet very advanced DSC controller supporting all popular telescopes.

Powered a rechargeable Lithium* battery or external power (5-9V DC), Nexus-II will be there when you need it.

Both Access Point and Infrastructure (WPE/WPA/WPA2) WiFi network connections are supported.

Included Items

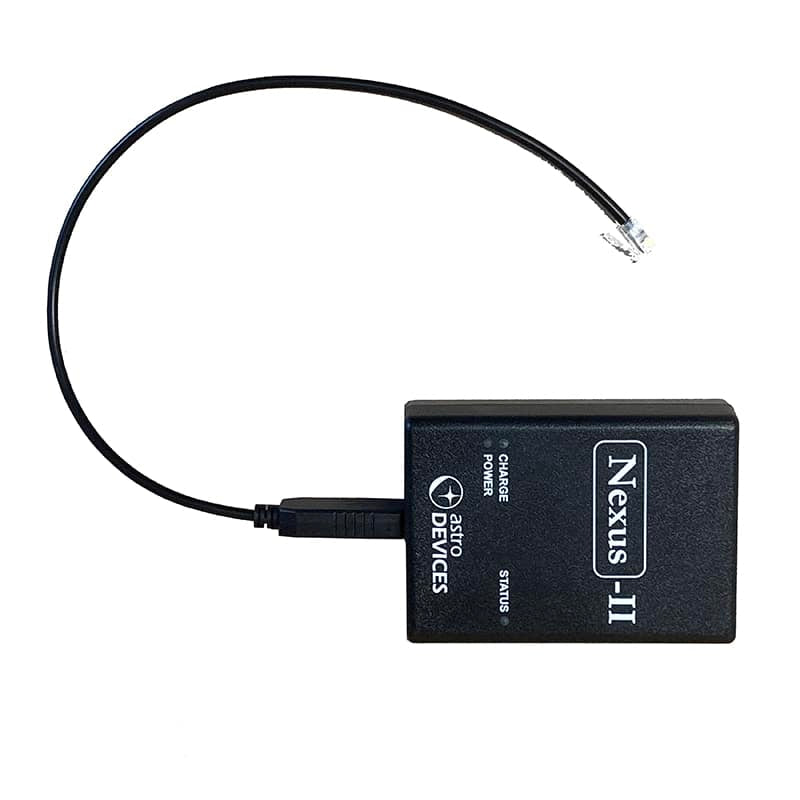

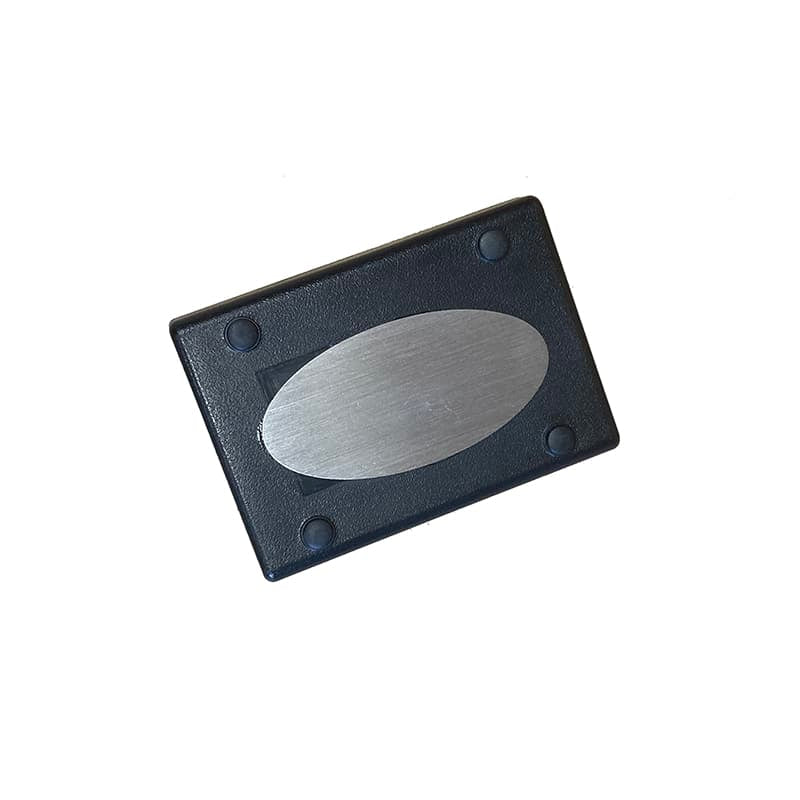

NEXUS-II adapter prepared with magnetic plate for installation

USB-to-Serial cable to connect between NEXUS adapter and PC-port on the mount head. Short length that does not tangle.

Power cable to charge the unit from a USB charger (5V).
