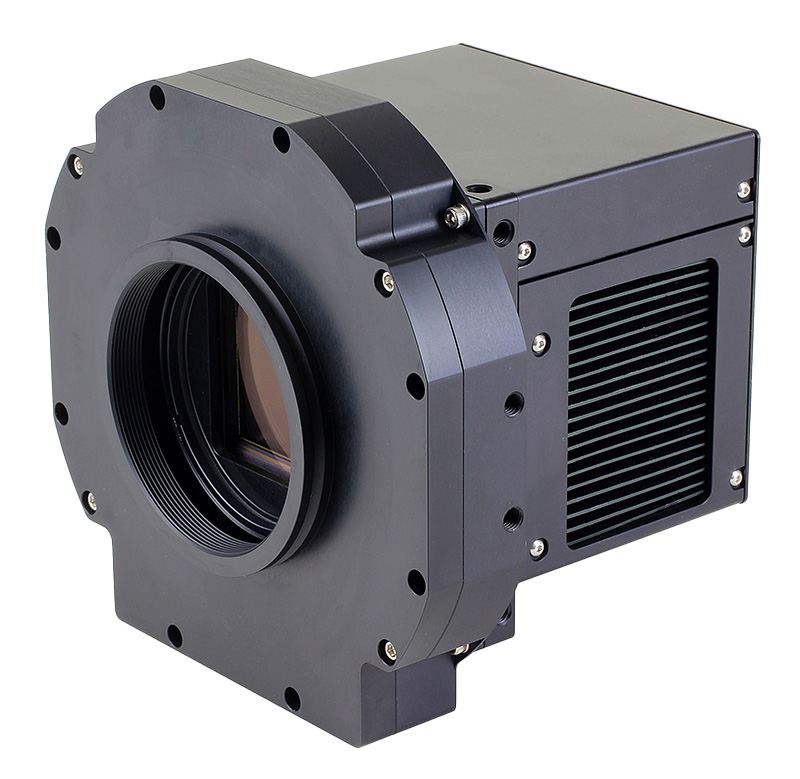

Kepler KL4040
Kepler KL4040

FLI

Kepler KL4040

Regular price
$ 17,160.00
Sale price
$ 17,160.00
Unit price
per

This item is a Special Order from the Manufacturer

Special Order

Overview

  • USB3.0 (3 Gbps)
  • Optional QSFP (8 Gbps)
  • Broadband AR Coated Window - (Transmissivity Curves)
  • Liquid and/or Air Cooled
  • Deep Cooling (up to 60°C below ambient)
  • Optional Anti-Dew Technology (ADT)
  • LDR and HDR modes
  • Small Footprint (4 x 4 x 4.2 in.)
  • Reaches operating temperatures in 5 minutes!
  • Support for up to 35 channels
  •

    Description

    The Kepler Series is a giant step forward in throughput, providing faster digitization, higher speed interfaces, and up to 35 channel readout. Sensors to be supported include front and back illuminated sCMOS, interline transfer CCDs, and EMCCDs.

    The KL4040 scientific CMOS camera has the same pixel size and imaging area as the popular KAF-16803 CCD, but with half the noise and 40% higher quantum efficiency. Kepler cooled sCMOS cameras provide ultra-high sensitivity, ultra-low noise, and high frame rates, all at game-changing price to performance ratio.



    Specifications

    KL4040 Sensor Specs
    Sensor: GPixel GSense4040
    Pixels: 4096 x 4096
    Pixel Size: 9 μm
    Full Well Capacity: 70000 e-
    Dynamic Range: 86 dB HDR
    Sensor Diagonal: 52.1
    Video Size (inch): 3.3
    Color Options: Monochrome
    Sensor Type: Front Illuminated
    Shutter Type: Rolling
    Sensor Grades: Grade 1
    KL4040 Performance Camera Spec Sheet: PDF
    Digitization Speed: 24 fps HDR
    Typical System Noise: 3.7 e- HDR
    Typical Maximum Cooling: 55ºC Below Ambient
    Typical Dark Current: <0.5 e-/pixel/sec @ -30ºC
    Typical Non linearity: <1%
    Lens Mounts: Optional Nikon F-Mount or Canon EOS mount
    Available Shutters: Optional 65 mm
    All Kepler Cameras
    Housing Dimensions: 4.0 x 4.0 x 4.17 (101.6 x 101.6 x 105.9)
    Focal Plane to Faceplate: 15.75 mm (optical)
    Weight: 3.0 lbs.
    Interface: USB 3.0
    Temperature Stability: 0.1ºC
    Remote Triggering: Standard
    Shutter MTBF: 1,000,000
    Power: 12V (100-240V AC to 12V DC power supply included). With TEC off: <1A. TEC at 100%: 4.4A. (Optional Electromechanical Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A.)
    Environment: -30ºC - 45ºC | 10% - 90% Relative Humidity
