Sky Commander Digital Setting Circles and Accessories

Regular price
$ 499.00
Sale price
$ 499.00
Unit price
per

This item is out of stock but you can place an order now and we’ll ship when it becomes available.

Description

* User programmable up to 30,000 objects
* Currently there are ten popular astronomical catalogs available for download with more to come.

The new Flash 4 Sky Commander transforms your telescope into an efficient observing tool. Locate and identify objects within seconds, even in light polluted skies. Spend valuable observing hours at the eyepiece instead of hunting objects. "Zero-in" the telescope to celestial objects. Just move the scope until the "difference reading" of the object you selected is zero. It's just that easy! Identify unknown objects in a real time search and identify mode. Any object within 0.5 degrees is identified and displayed instantly. Other features include 32 character super twist LCD information display with backlight dimmer control, battery monitor, magnitude filter. Best of all, the Flash 4 uses the simple, time tested two star alignment. The Sky Commander has an extensive 16,000 object data base including NGC, Messier, UGC, IC, planets and 200 programmable objects. Complete with computer, 10,000 step encoders, custom made cables and truss telescope mounting hardware. We have hardware to fit most alt/az mounted telescopes.

The Flash 4 Sky Commander is supplied with a computer interface cable, manual can be downloaded from www.skyeng.com/.

Sky Commander XP4 Instructions including Astrosystems (#1) and Obsession (#2) Lightbridge (#4) hardware addendum.

Specifications

  • Hardware set #1 (Flush sided as with a TeleKit) is shown at left below in Photo 1.
  • Hardware set #2 (side protrusions as with a Obsession) is shown below in Photo 2.
  • Hardware Set #3 Orion, Hardin other scopes with spring tensioned altitude bearings.
  • Hardware Set #4 Meade Lightbridge.

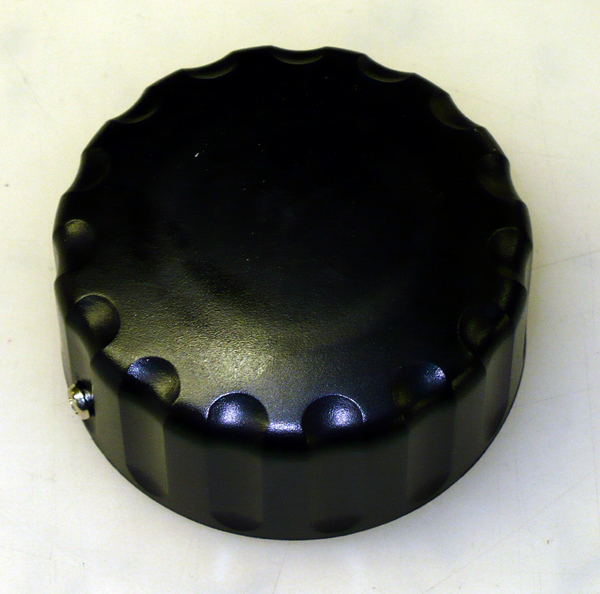

  • Hardware Set #5 Zhumell, Apertura, GSO, Astro-Tech with altitude tension knob.

The following astronomy programs (and others) for the PC, and some Mac, support communications with the Sky Commander:

  • "The Sky" www.bisque.com
  • "Megastar 5.0" www.willbell.com
  • "Guide 8.0" www.projectpluto.com
  • "Earth Centered Universe" www.nova-astro.com
  • "Sky Tools 2" www.skyhound.com
  • "Sky Map Pro 10" www.skymap.com
  • "Starry Night Pro" www.skyandtelescope.com
  • "AstroPlanner by iLanga Inc." www.ilangainc.com/astroplanner/



Catalog Size

16,000, upgradeable to 30,000+

Search Mode, Constellation

Yes

Processor

8 bit 68HC11

Search Mode, Radius

Yes, 0.5 degree

User Catalog

Yes

Catalog by Name

Yes, Double Stars

Display

32 character LCD, yellow Green

Planet Position

Yes, better that 0.1 arc minute

Display Brightness Settings

3

Equatorial Platform Compatible

Yes

Display

RA/DEC or ALT/AZ

Platform Two Star Align

Yes

Display Resolution

0.1 deg, upgradeable to 0.01 deg.

Polar Equatorial Mode

Yes

Display Heater

Yes

Realign on Object

Yes

Sidereal Timer

Yes

Serial Support

Yes

Encoder Resolution

10,000, upgradeable to 32,767

ServoCAT Support

Yes

Encoder Test Mode

Yes (in upgrade)

Sky Tracker Support

Yes

Encoder Mode Display

Yes, (via RS-232)

Weight

8 oz

Encoder Sample Rate

2000/sec. (moving) 1000/sec. stationary

Battery Monitor

Yes

Search Mode, Magnitude

Yes

Power

9V  gives ~40 hours operation



ShipWeight

Complete Set #1

Flash 4 computer, 10,000 encoders, cable set, serial interface cable, mounting hardware set 1*

$499.00

3 lbs.

Complete Set #2

Flash 4 computer, 10,000 encoders, cable set, serial interface cable, mounting hardware set 2*

$549.00

4 lbs.

Complete Set #3

Flash 4 computer, 10,000 encoders, cable set, serial interface cable, mounting hardware set 3*

$549.00

4 lbs.

Complete Set #4

Flash 4 computer, 10,000 encoders, cable set, serial interface cable, mounting hardware set 4*

$525.00

4 lbs.

Complete Set #5

Flash 4 computer, 10,000 encoders, cable set, serial interface cable, mounting hardware set 5*

$529.00

4 lbs.

Flash 4 Computer

Computer only

$299.00

1 lb.

Encoder

10,000 step with low profile phone plug module

$80.00

1/2 lb.

Encoder *new*

32,000 step with low profile phone plug module

110.00

1/2 lb.

Cable Set

specify cable lengths or telescope size (up to 22")

$30.00

1 lb.

Cable Set

specify cable lengths or telescope size (24" to 36")

$45.00

2 lbs.

Hardware Set #1

Telescopes with no side protrusions ( TeleKit, Starmaster, Discovery, see photo 1)

$60.00

2 lbs.

Hardware Set #2

Telescopes with exterior mount blocks, includes azimuth pivot bolt (state size and length)

(Obsession, others with protrusions on side of Mirror box, see photo 2)

$150.00

2 lbs.

Hardware Set #3

Orion, Hardin others with spring tensioned altitude bearings

$135.00

2 lbs.

Hardware Set #4

Lightbridge

$70.00

2 lbs.

Hardware Set #5

Zhumell, Apertura, GSO and Astro-Tech with altitude tension knob

$165.00

2 lbs.



 * To Order please state telescope size and altitude bearing diameter for correct cable length and tangent arm length.


Photo 1, complete Flash 4 system with hardware set #1.



<h3align="center">

Photo 2.  This is altitude portion of hardware kit #2 shown on a 20" Obsession, complete hardware set #2 shown at right.

This is the configuration used on  hardware set 1.  The encoder is mounted with it's shaft facing away from the telescope.  The side of the mirror box can have no components that protrude off the side to interfere with the tangent arm when moved.

XP-4 Flash v 5.02


Sky Commander Computer

Lightbridge Hardware Set

* User programmable up to 30,000 objects

* Currently there are ten popular astronomical catalogs available for download with more to come

The new Flash 4 Sky Commander transforms your telescope into an efficient observing tool.  Locate and identify objects within seconds, even in light polluted skies.  Spend valuable observing hours at the eyepiece instead of hunting objects. "Zero-in" the telescope to celestial objects.  Just move the scope until the "difference reading" of the object you selected is zero.  It's just that easy!  Identify unknown objects in a real time search and identify mode.  Any object within 0.5 degrees is identified and displayed instantly.  Other features include 32 character super twist LCD information display with backlight dimmer control, battery monitor, magnitude filter.  Best of all, the Flash 4 uses the simple, time tested two star alignment.  The Sky Commander has an extensive 16,000 object data base including NGC, Messier, UGC, IC, planets and 200 programmable objects.  Complete with computer, 10,000 step encoders, custom made cables and mounting hardware.

The Flash 4 Sky Commander is supplied with a computer interface cable, manual can be downloaded from www.skyeng.com/.



Sky Commander Digital Setting Circles

XP-4 Flash v 5.02

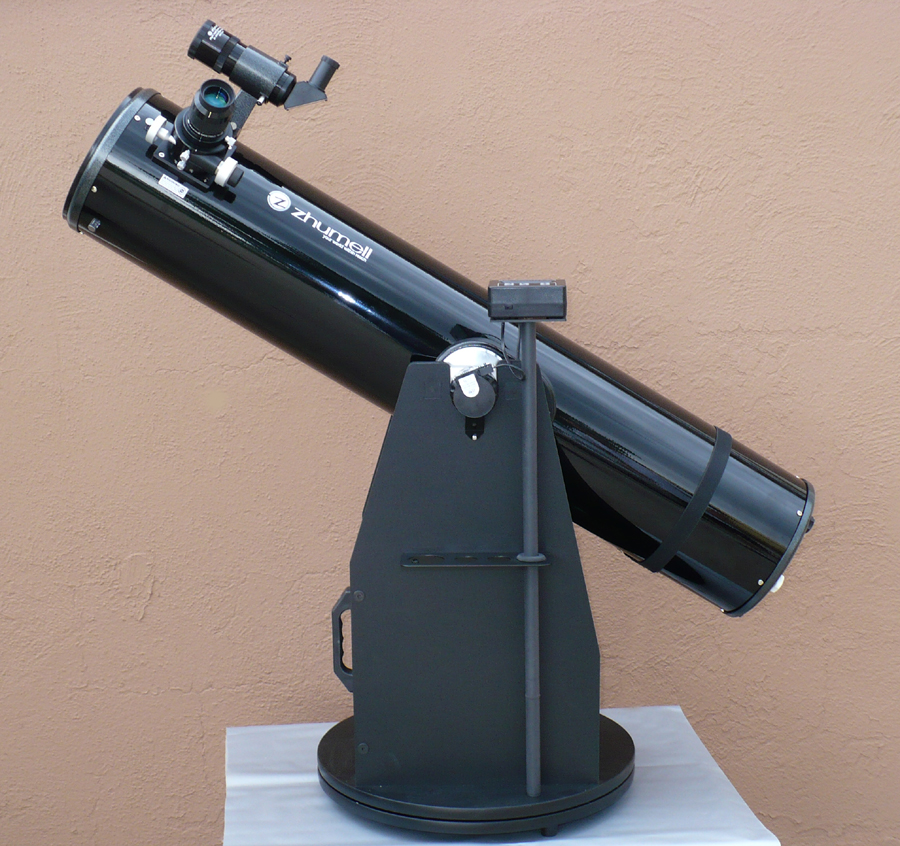

Sky Commander mounted on Zhumell Z-8

Sky Commander Computer with Zhumell Hardware Set

*  Allows the use of the friction adjustment on both axes

*  Installs with simple hand tools

*  Use with many planetarium programs (with optional planetarium cable)

*  User programmable up to 30,000 objects

*  Currently there are ten popular astronomical catalogs available for download with more to come

*  Convenient Mount Stalk is included!



The new Flash 4 Sky Commander transforms your telescope into an efficient observing tool.  Locate and identify objects within seconds, even in light polluted skies.  Spend valuable observing hours at the eyepiece instead of hunting objects. "Zero-in" the telescope to celestial objects.  Just move the scope until the "difference reading" of the object you selected is zero.  It's just that easy!  Identify unknown objects in a real time search and identify mode.  Any object within 0.5 degrees is identified and displayed instantly.  Other features include 32 character super twist LCD information display with backlight dimmer control, battery monitor, magnitude filter.  Best of all, the Flash 4 uses the simple, time tested two star alignment.  The Sky Commander has an extensive 16,000 object data base including NGC, Messier, UGC, IC, planets and 200 programmable objects.  Complete with computer, 10,000 step encoders, custom made cables and mounting hardware.

The Flash 4 Sky Commander is supplied with a computer interface cable, manual can be downloaded from www.skyeng.com/.



Catalog Size 16,000, upgradeable to 30,000+   Search Mode, Constellation Yes
Processor 8 bit 68HC11   Search Mode, Radius Yes, 0.5 degree
User Catalog Yes   Catalog by Name Yes, Double Stars
Display 32 character LCD, yellow Green   Planet Position Yes, better that 0.1 arc minute
Display Brightness Settings 3   Equatorial Platform Compatible Yes
Display RA/DEC or ALT/AZ   Platform Two Star Align Yes
Display Resolution 0.1 deg, upgradeable to 0.01 deg.   Polar EQ Mode Yes
Display Heater Yes   Realign on Object Yes
Sidereal Timer Yes   Serial Support Yes
Encoder Resolution 10,000, upgradeable to 32,767   ServoCat Support Yes
Encoder Test Mode Yes (in upgrade)   Sky Tracker Support Yes
Encoder Mode Display Yes, (via RS-232)   Weight 8 oz
Encoder Sample Rate 2000/sec. (moving) 1000/sec. stationary   Battery Monitor Yes
Search Mode, Magnitude Yes   Power 9V  gives ~40 hours operation





View the installation instructions here

Lightbridge DSC installation addendum

Catalog Size 16,000, upgradeable to 30,000+   Search Mode, Constellation Yes
Processor 8 bit 68HC11   Search Mode, Radius Yes, 0.5 degree
User Catalog Yes   Catalog by Name Yes, Double Stars
Display 32 character LCD, yellow Green   Planet Position Yes, better that 0.1 arc minute
Display Brightness Settings 3   Equatorial Platform Compatible Yes
Display RA/DEC or ALT/AZ   Platform Two Star Align Yes
Display Resolution 0.1 deg, upgradeable to 0.01 deg.   Polar EQ Mode Yes
Display Heater Yes   Realign on Object Yes
Sidereal Timer Yes   Serial Support Yes
Encoder Resolution 10,000, upgradeable to 32,767   ServoCat Support Yes
Encoder Test Mode Yes (in upgrade)   Sky Tracker Support Yes
Encoder Mode Display Yes, (via RS-232)   Weight 8 oz
Encoder Sample Rate 2000/sec. (moving) 1000/sec. stationary   Battery Monitor Yes
Search Mode, Magnitude Yes   Power 9V  gives ~40 hours operation
